Milesight Wireless Single-Phase Energy Meter CT103 | LoRaWAN | Max. 300 A | Battery-free (Supercapacitor) | USB-C Configuration | 1s Sampling | IP30 | Clamp Ø 16 mm

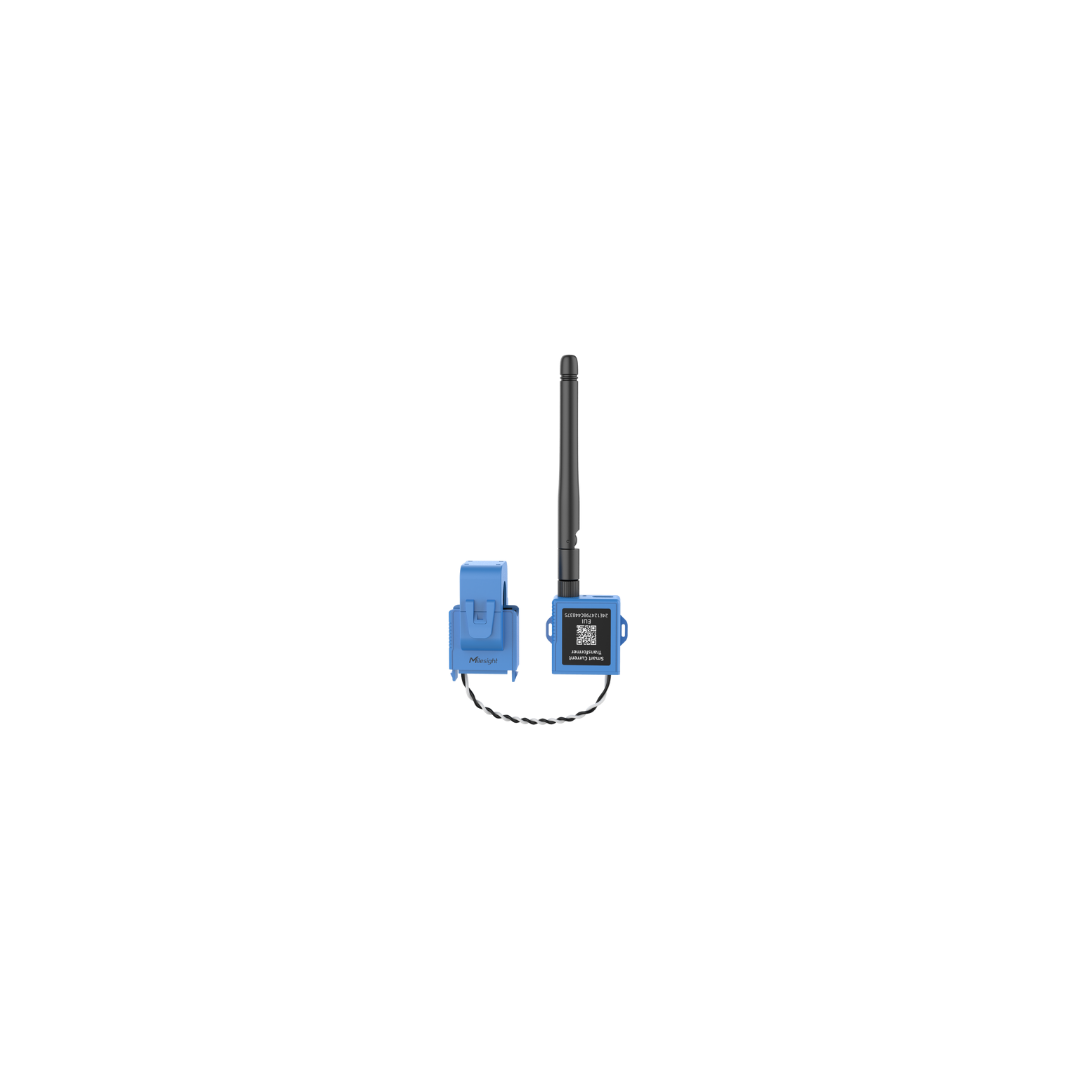

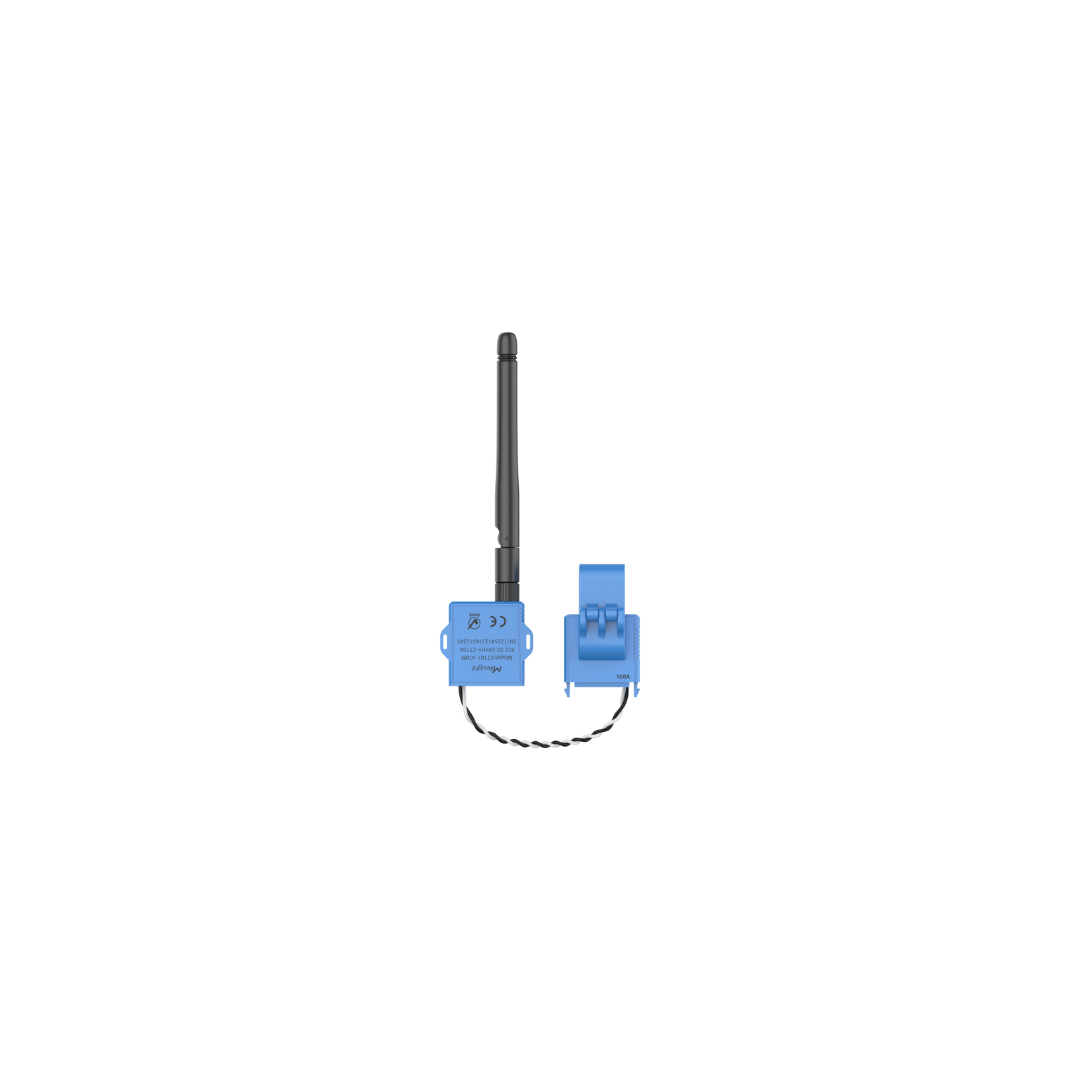

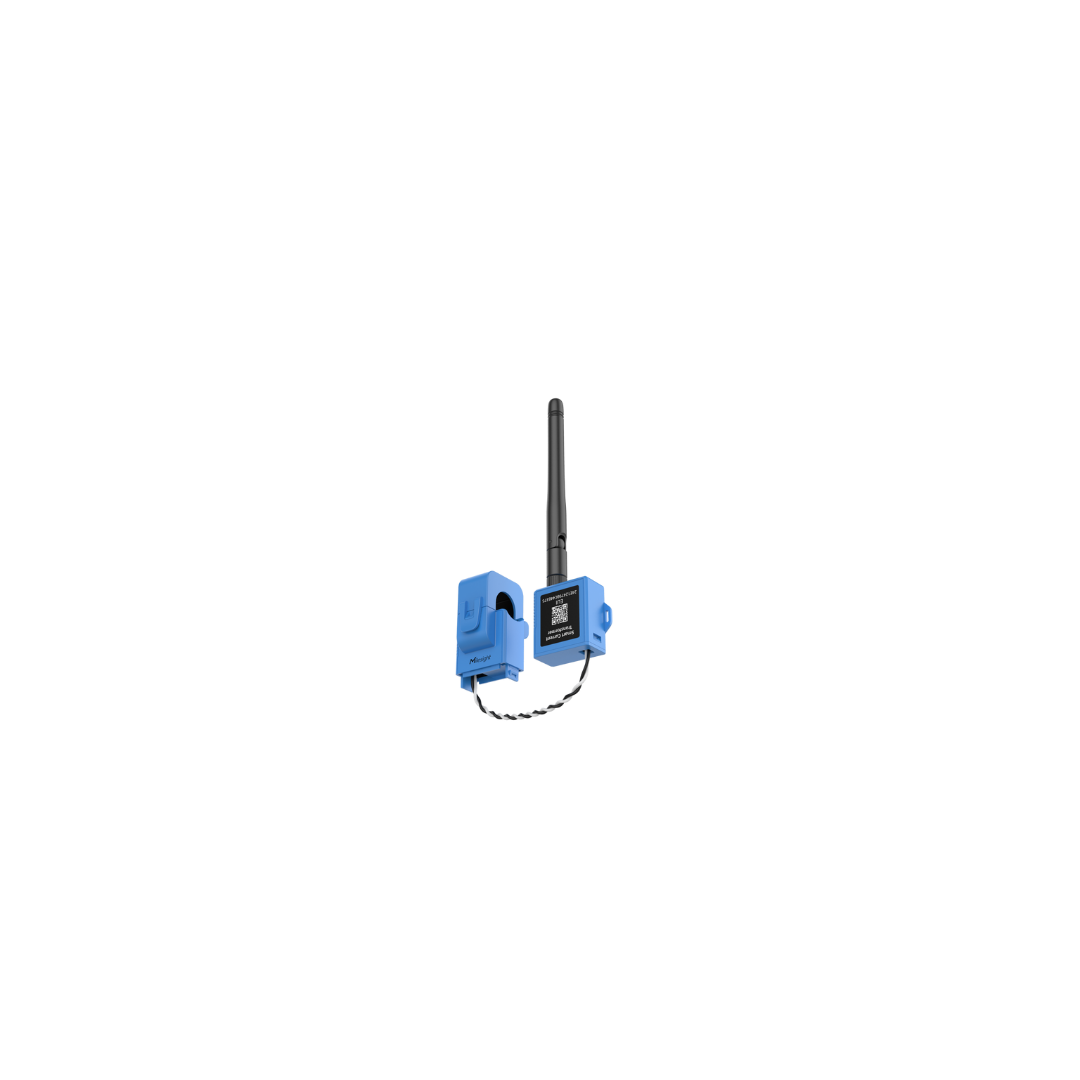

The Milesight CT103 is a wireless single-phase LoRaWAN® energy meter equipped with a current clamp for accurate energy monitoring in residential and commercial environments. The clamp allows for easy installation around existing wiring without requiring any electrical modifications.
Powered by a supercapacitor, the CT103 operates completely battery-free, ensuring long-term, maintenance-free reliability. With a maximum current input of 300 A and a 1-second sampling interval, the device provides precise, real-time energy consumption measurements.
Configuration can be done via LoRa downlinks or through USB-C using the Milesight ToolBox app, enabling the setup of thresholds and alerts.
The CT103 comes standard with a swivel antenna.
SKU: CT103-868M
IO-nr.: IO-102-086
